This guide applies to: SPR-X 3100-SX+
Please note: In order to take advantage of 4 Numa clusters, each of the 4 memory channels need at least 1 DIMM installed.
To enable 4 Numa clusters, go to:

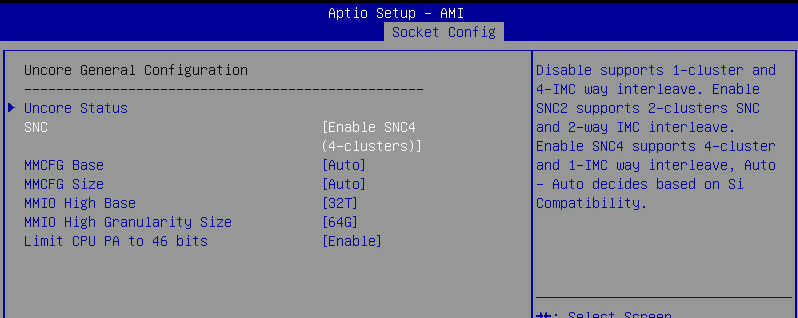

Socket Config -> Uncore Configuration -> Uncore General Configuration -> set SNC to [Enable SNC4 (4-clusters)]
Then go to:
Socket Config -> Common RefCode Configuration -> make sure Virtual Numa is set to [Disable]
